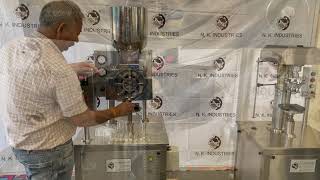

Semi Automatic Injectable dry powder filling machine

N.K Industries manufacture Semi Automatic injectable dry powder filling machine Model NKPF-60, which is semi automatic micro powder dosing machine for dosing sterile powders with human intervention. The powders are filled into Glass Vial using an inimitable vacuum -pressure dosing system.

Semi automatic injectable dry powder filling machine is an inexpensive solution developed by N.K Industries for low & moderate production requirement for multifarious injectable pharmaceutical companies. The most characteristic feature of machine is No vial – NO fill system.

Sailent Feature

CGMP Model.
Highly Precise Powder Dosing System Based On Vacuum -pressure.
Bottle Feeding Is Done Manual On Bottle Loading Platform.
All Part Comes In Contact With Powder Are Manufactured Using SS 316L.
"No Vial – No Filling" Technique Eliminates Wastage Of Expensive Sterile Powder.
Flexible To Suit From 5 Ml. To 50 Ml Vials.
All Contact Parts Are Of S.S 316L.
Quick Change Over With Minimum Use Of Tools.
Contact Parts Are Removable For Mandatory Autoclaving.

Technical Specification

Filling Speed	40 Vials/minute Based On 5-10ml Vial For Single Dosage (Depending Up On Size/types Of Vial & Powder Density)
Design	Left To Right
Dosage	50 Mg To 1.5 Grams. Single Dose (with Change Parts) 1.5 Grams To 6 Grams. Double, Triple And Four Doses. Fill Range Depending Upon Vial Opening And Bulk Density Of Powder. Under Controlled Level Of Humidity (i.e. 25%)
Dosing Wheel	One
Dosing Port / Wheel	8 Nos
Via Diameter	25 Mm To 45 Mm Max
Vial Height	75 Mm Maximum
Power Supply	0.5 HP , 230V, 1 Phase
Fill Accuracy	±2% Depending Upon Consistency And Uniformity Of Bulk Density Of Injectable Powder
Bottle Loading	On Provided Bottle Platform
Powder Suction	Through Vacuum
Powder Delivered	Through Air/Nitrogen (Customer To Provide)
Machine Dimension	525 (mm) X 600 (mm) X 650 (mm)
